型 号 Model： |
FT-5679-C001 |
|
产品名称 Product Name: |

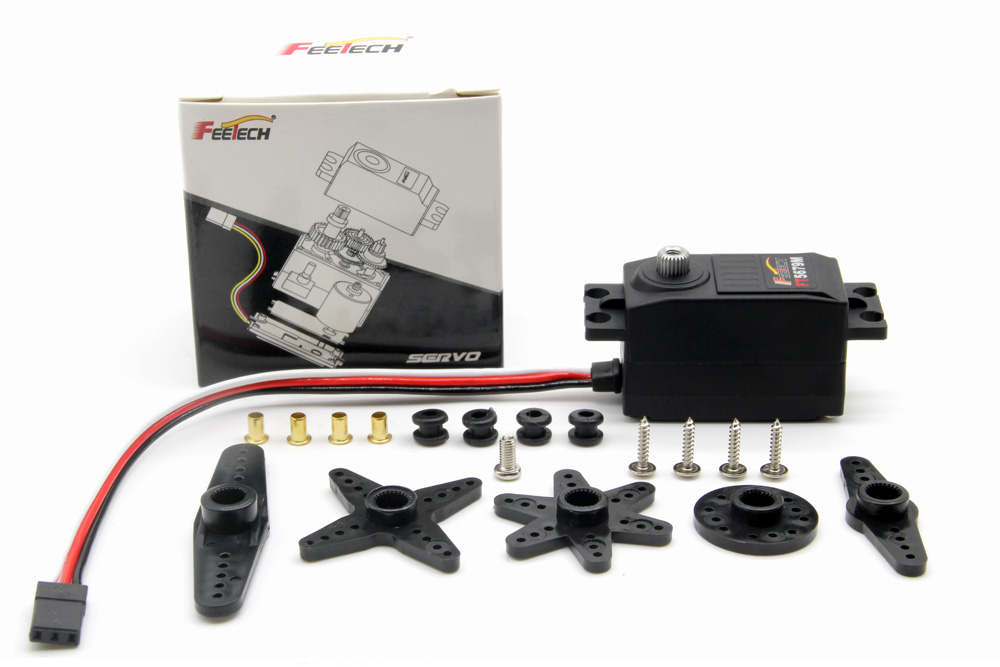

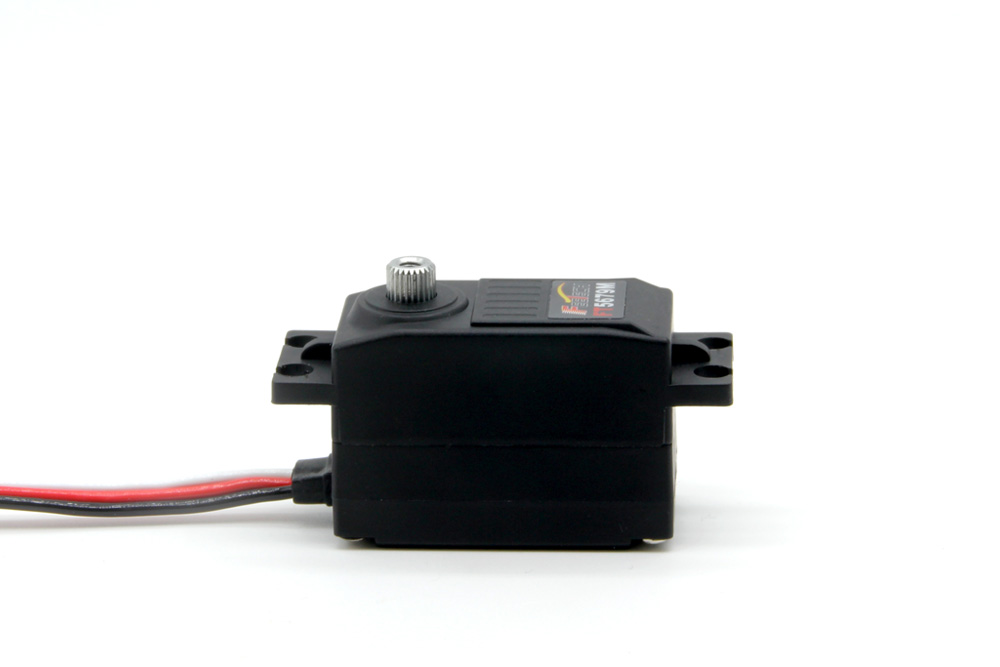

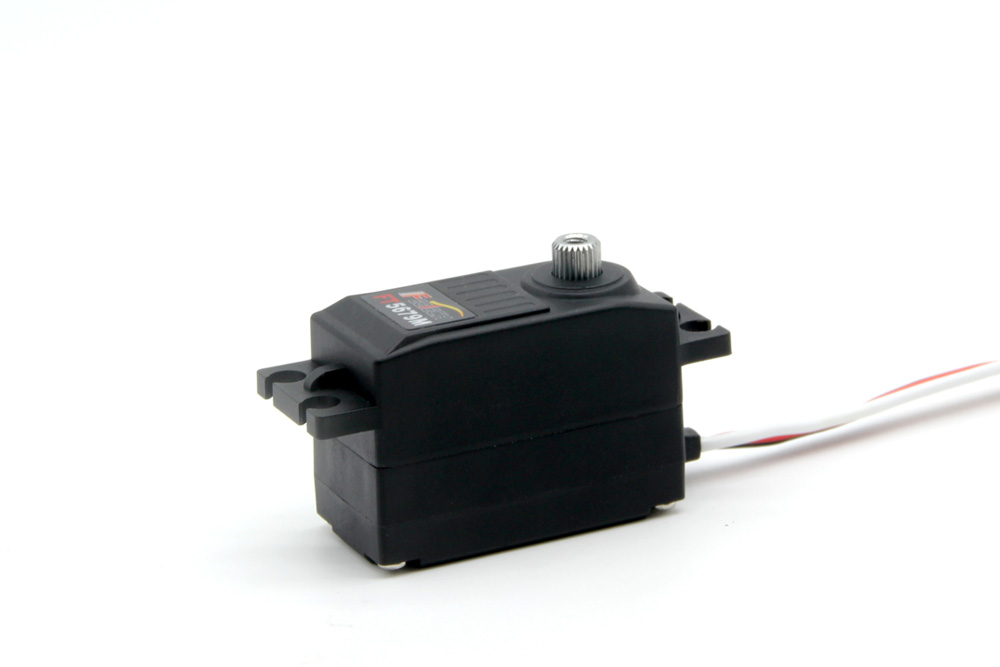

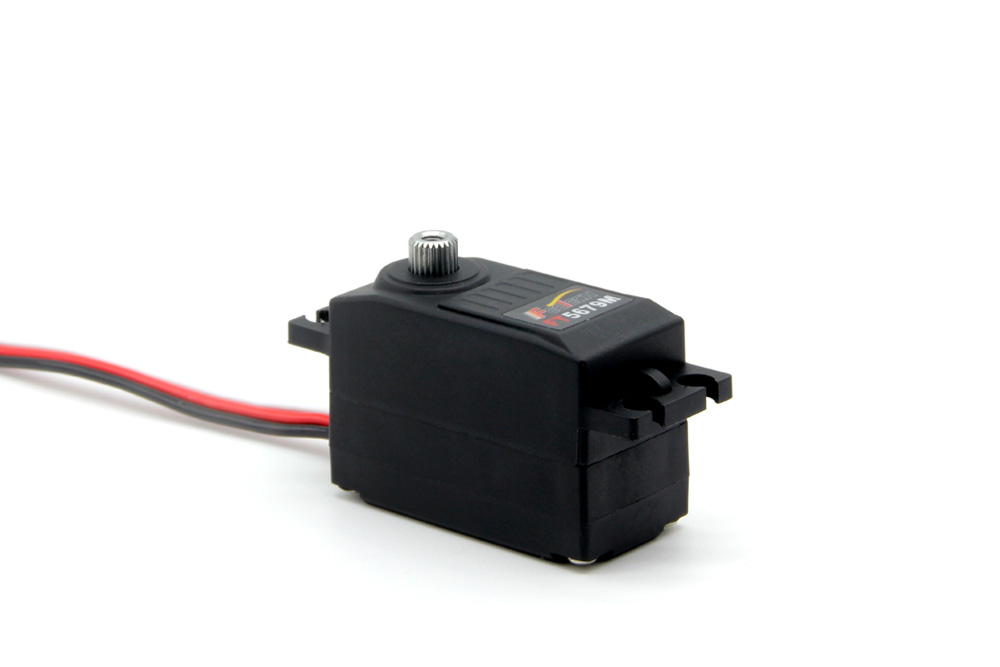

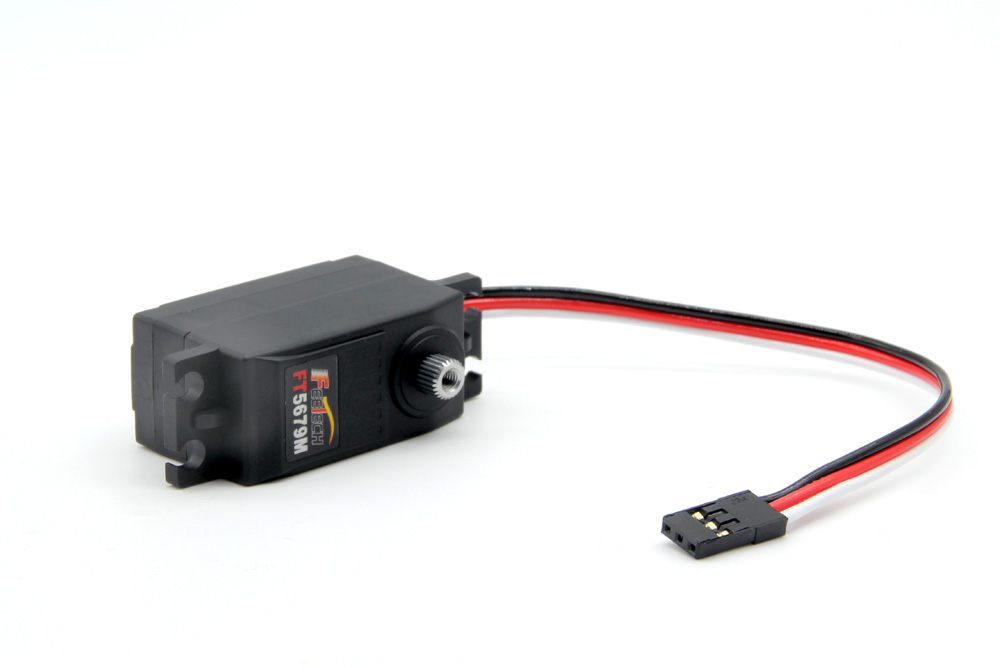

7.4V 25kg.cm180°舵机/7.4V 25KG 180 Degree Copper Gear Servo |
| 存储温度 Storage Temperature Range | -30℃～80℃ |
| 运行温度 Operating Temperature Range: | -20℃～60℃ |
|
尺寸 Size: |
A：40.6mm B：20mm C: 26.6mm |
|
重量 Weight: |
43.6±2g |
| 齿轮类型 Gear type: |
Metal |
| 机构极限角度 Limit angle: |
No limit |
| 轴承 Bearing: | 滚珠轴承 Ball bearings |
| 出力轴 Horn gear spline: |
25T/5.9mm |
| 减速比Gear Ratio： | 1/258 |
| 外壳 Case: | PA+GF |
| 舵机线 Connector wire: | 14±0.5CM |
| 马达 Motor: |
Coreless Motor |
|
工作电压Operating Voltage Range: |
4-9V |
| 静态电流Idle current (atstopped) |
20mA@8.4V |
|
空载速度 No load speed: |
0.098sec/60°(102RPM)@8.4V |
| 空载电流 Runnig current(at no load) : | 440mA@8.4V |
|
堵转扭矩 Peak stall torque: |
25.8kg.cm@8.4V |
|
额定扭矩 Rated torque: |
7kg.cm@8.4V |
| 堵转电流 Stall current: | 3.6A@8.4V |
| 控制信号Command si gnal | Pulse width modification |
| 控制系统类型 Control System Type | Digital comparator |
| 脉冲宽度范围Pulse width range | 500~2500 μ sec |
| 中立位置Stop position | 1500 μ sec |
| 操作角度Running degree |
180°± 5°(at 500→2500μsec) |
| 死区宽度Dead band width | ≤4 μ sec |
| 旋转方向Rotating direction | 逆时针 Counterclockwi se (在1500→2000 μ sec) |
| 详细规格书下载Download detailed specifications: | |

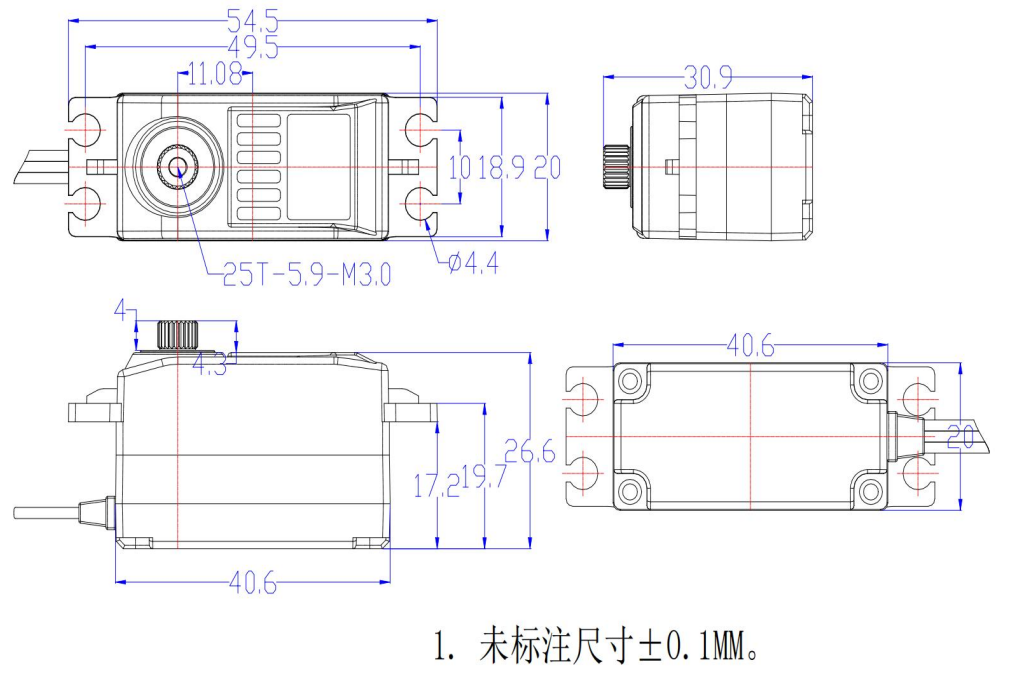

| 外形图 The Drawings: |
