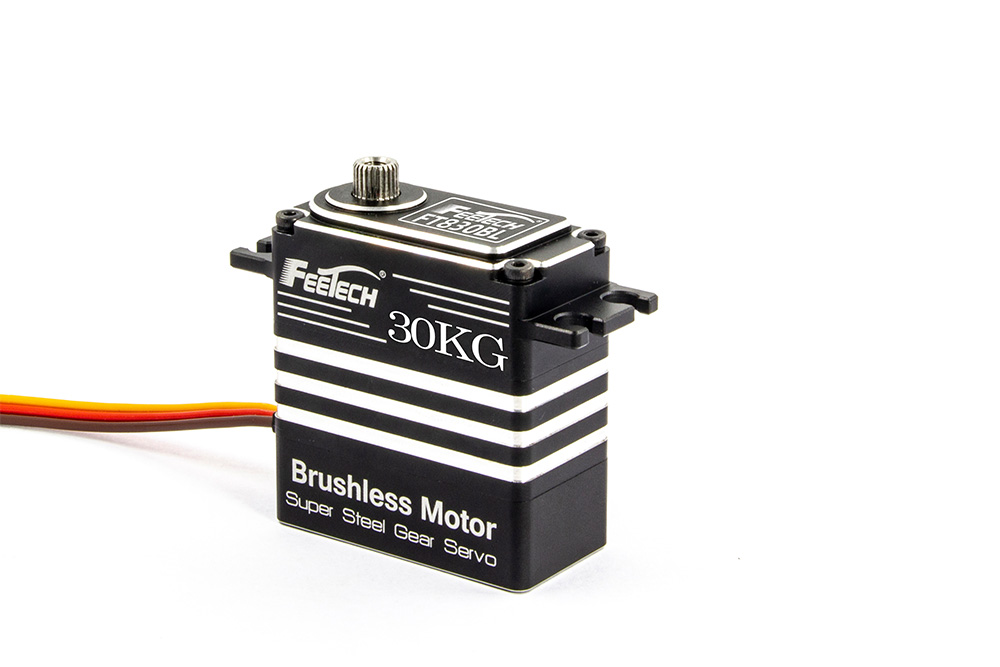

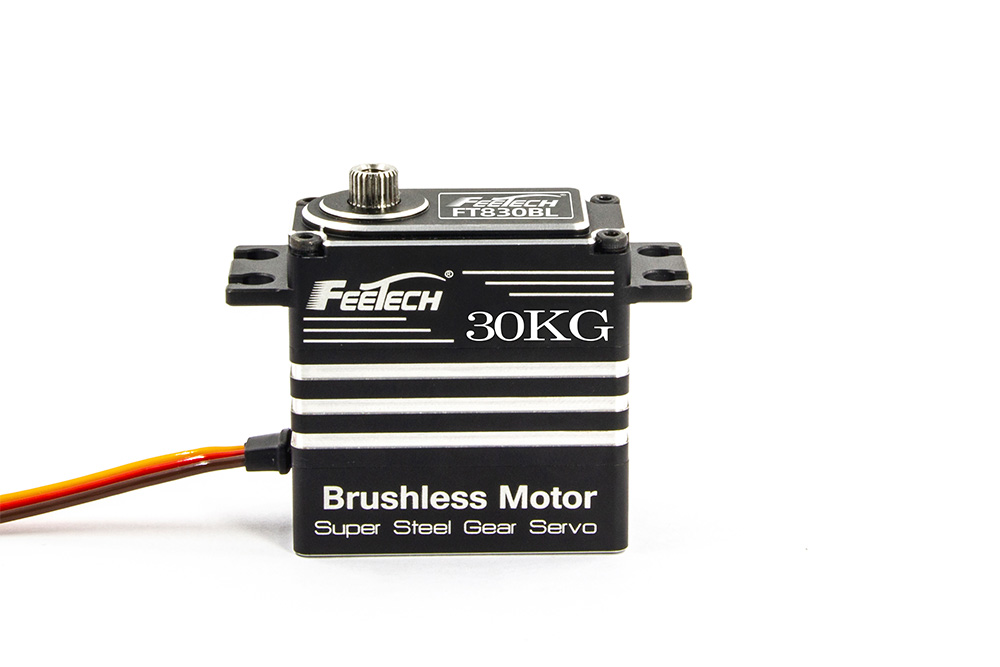

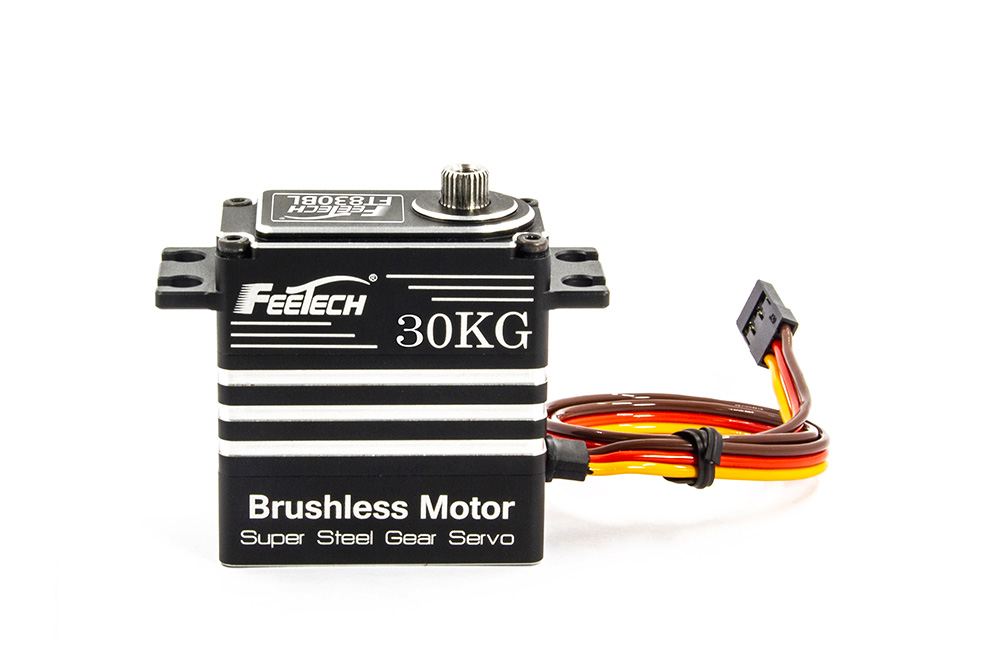

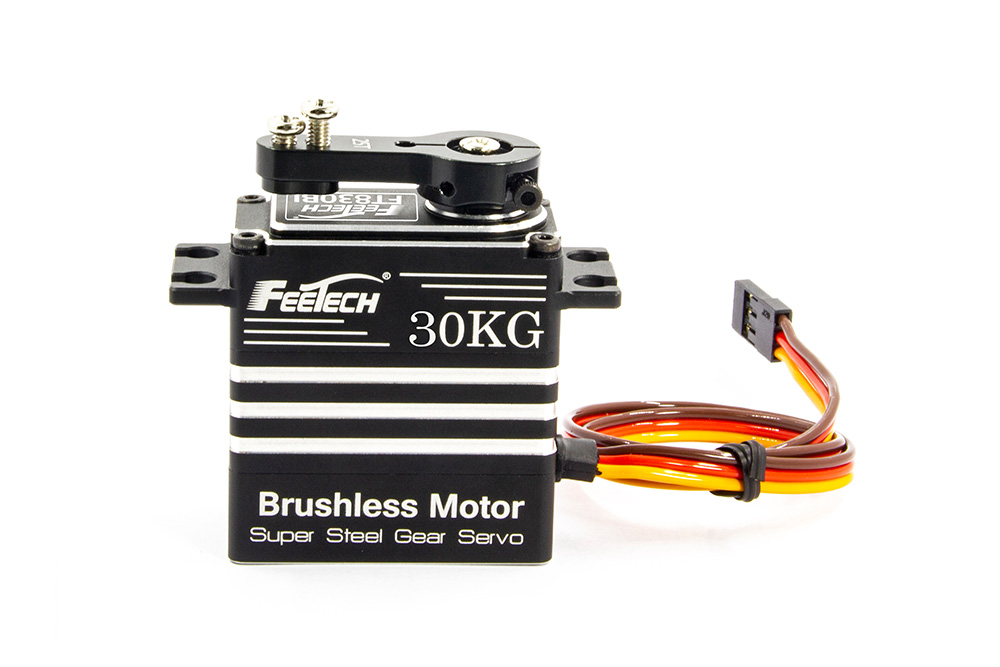

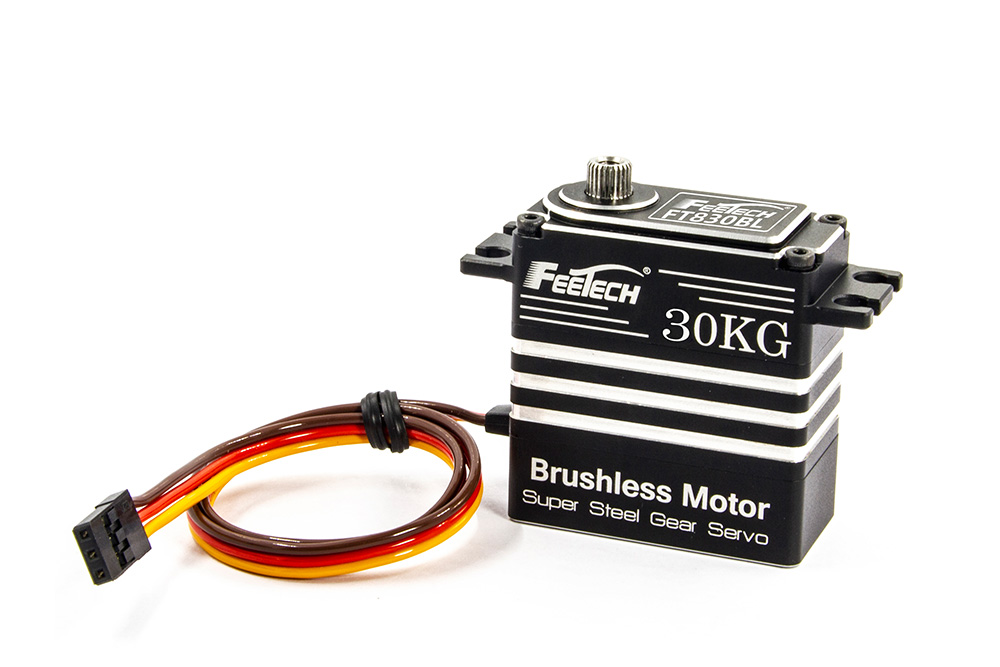

7.4V 30kg.cm PWM digital 180 servo

型 号 Model:

FT830BL

产品名称 Product Name:

7.4V 30kg.cm PWM数码180度金属壳钢齿轮无刷舵机/PWM digital 180-degree Metal Case Steel Gear Brushless Servo

存储温度 Storage Temperature Range -30℃~80℃
运行温度 Operating Temperature Range: -20℃~60℃

尺寸 Size:

A:40mm B:20mm C: 38.95mm

重量 Weight:

84.5± 1g

齿轮类型 Gear type:

Steel

机构极限角度 Limit angle:

NO limit

轴承 Bearing: Ball bearings
出力轴 Horn gear spline:

25T/5.9mm

减速比Gear Ratio: 1/378
外壳 Case: Aluminum
舵机线 Connector wire: 30CM
马达 Motor:

Brushless Motor

工作电压Operating Voltage Range:

6V-7.4V

静态电流Idle current (stopped)  6MA@7.4V

空载速度 No-load speed:

0.135sec/60°@7.4V

空载电流 Running current(at no load) : 180mA@7.4V

堵转扭矩 Peak stall torque:

30kg.cm@7.4V

额定扭矩 Rated torque:

10kg.cm@7.4V

堵转电流 Stall current: 4.2A@7.4V
控制信号Command signal Pulse width modification
放大器类型Amplifier type Digital comparator
脉冲宽度范围Pulse width range 500~2500 μ sec
中立位置Stop position 1500 μ sec
旋转角度Running degree

180°(at 500→2500μsec)

死区宽度Dead bandwidth ≤4 μ sec
旋转方向Rotating direction Counterclockwise see (在1500→2000 μ sec)
详细规格书下载Download detailed specifications:

FT830BL规格书-20200612-初次发行.pdf

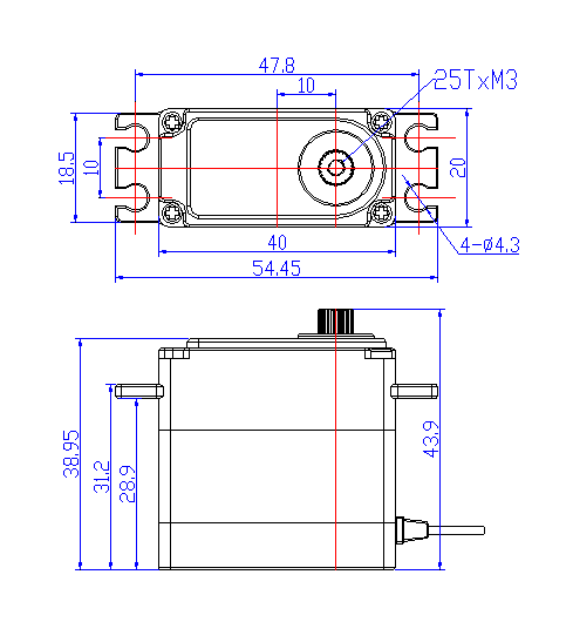

外形图 The Drawings:
