9kg continuous turn digital servo FT5309R

型 号 Model:

FT5309R

产品名称 Product Name:

6V  9公斤  360度连续转数码舵机  /360 Degree Continuous Rotation

存储温度 Storage Temperature Range -30℃~80℃
运行温度 Operating Temperature Range: -15℃~70℃

尺寸 Size:

A:40.15mm B:20.15mm C:38.95mm D:54mm

重量 Weight:

59g

齿轮类型 Gear type: Copper Gear(Gear Ratio=135:1)
机构极限角度 Limit angle:

NO limit

轴承 Bearing: NO Ball bearings
出力轴 Horn gear spline: 25T(OD5.96mm)
摆臂 Horn type: Plastic,POM
外壳 Case: Nylon & Fiberglass
舵机线 Connector wire: 300mm ±5 mm( JR)(Brown ,Red and Orange)
马达 Motor: Metal brush motor

工作电压Operating Voltage Range:

4.8-6V

静态电流  Idle current(at stopped) 5mA

空载速度 No load speed:

110RPM@6V

空载电流 Runnig current(at no load) : 210 mA @6V

堵转扭矩 Peak stall torque:

9.5kg.cm@6V

额定扭矩 Rated torque:

3kg.cm@6V

堵转电流 Stall current: 2200mA@6V
旋转角度 Running degree:

360°Continuous rotation

旋转方向 Rotating direction

Counterclockwise (when 1500~2000 µsec)

Stop (1500±20 µsec)

clockwise (when 1500~1000 µsec)

详细规格书下载Download detailed specifications:

FT5309R-20190927specs.pdf

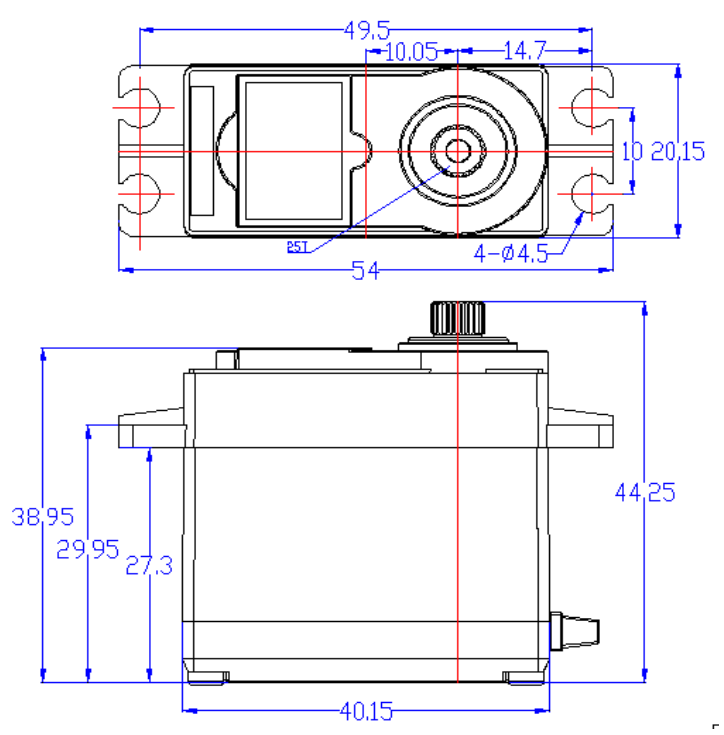

外形图 The Drawings:
