型 号 Model： |
FM90-C001 |
|
产品名称 Product Name: |
6V 1.5kg.cm塑料壳POM齿铁芯牙箱 |
| 存储温度 Storage Temperature Range | -30℃～80℃ |
| 运行温度 Operating Temperature Range: | -10℃～60℃ |
|
尺寸 Size: |
A：22.5mm B：12.1mm C: 26.7mm |
|
重量 Weight: |
8.5± 1g |
| 齿轮类型 Gear type: |
POM |
| 机构极限角度 Limit angle: |
No limit |
| 轴承 Bearing: | NO |
| 出力轴 Horn gear spline: |
21T/4.86mm |
| 减速比Gear Ratio： | 1/263 |
| 外壳 Case: | PC plastic |
| 舵机线 Connector wire: | 8.5CM+/-5mm |
| 马达 Motor: |
Core Motor |
|
工作电压Operating Voltage Range: |
3V-6V |
| 静态电流Idle current (atstopped) |
6MA@6V |
|
空载速度 No load speed: |
160RPM/60°@6V |
| 空载电流 Runnig current(at no load) : | 170mA@6V |
|
堵转扭矩 Peak stall torque: |
1.5kg.cm@6V |
|
额定扭矩 Rated torque: |
0.5kg.cm@6V |
| 堵转电流 Stall current: | 1010A@6V |
| 详细规格书下载Download detailed specifications: | |

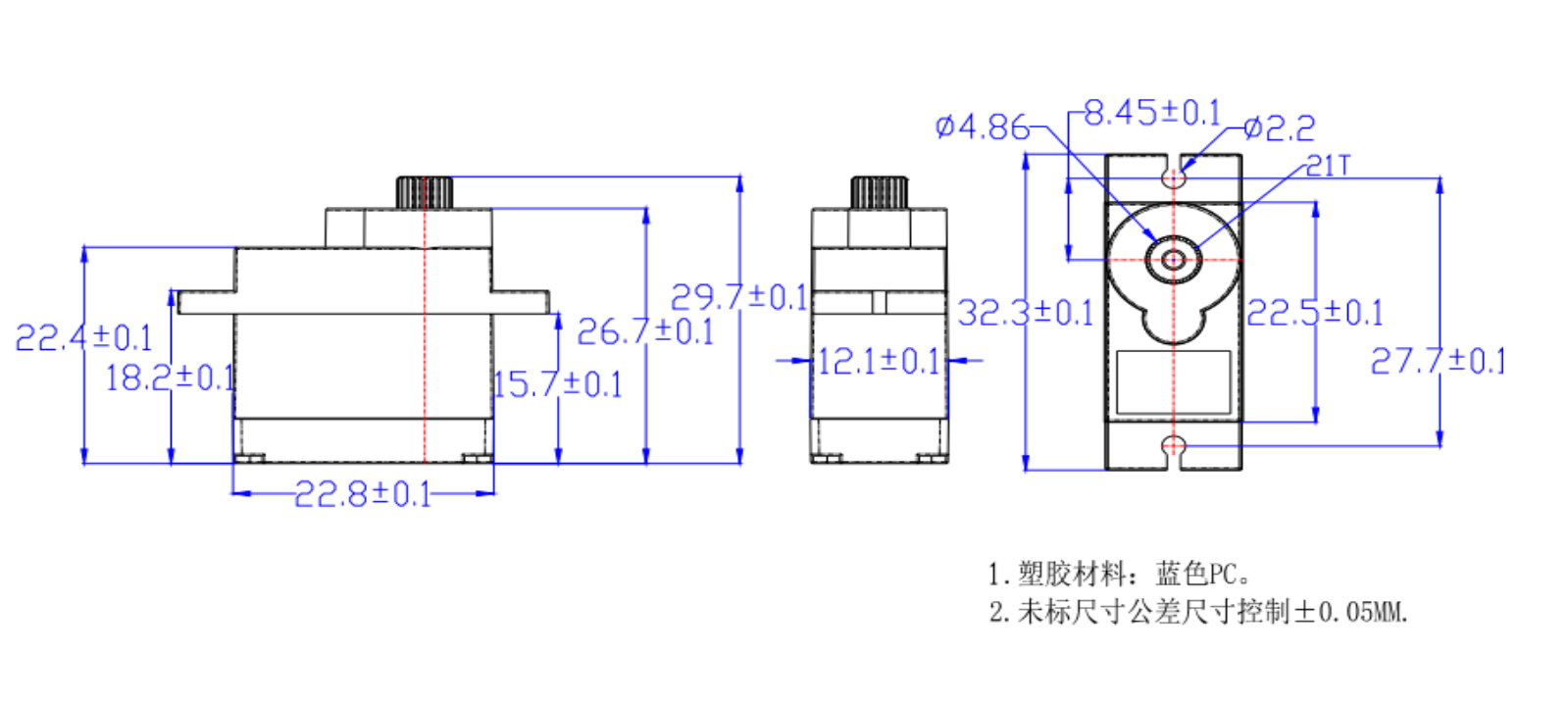

| 外形图 The Drawings: |
