型 号 Model： |
FT-995-C001 |
|
产品名称 Product Name: |

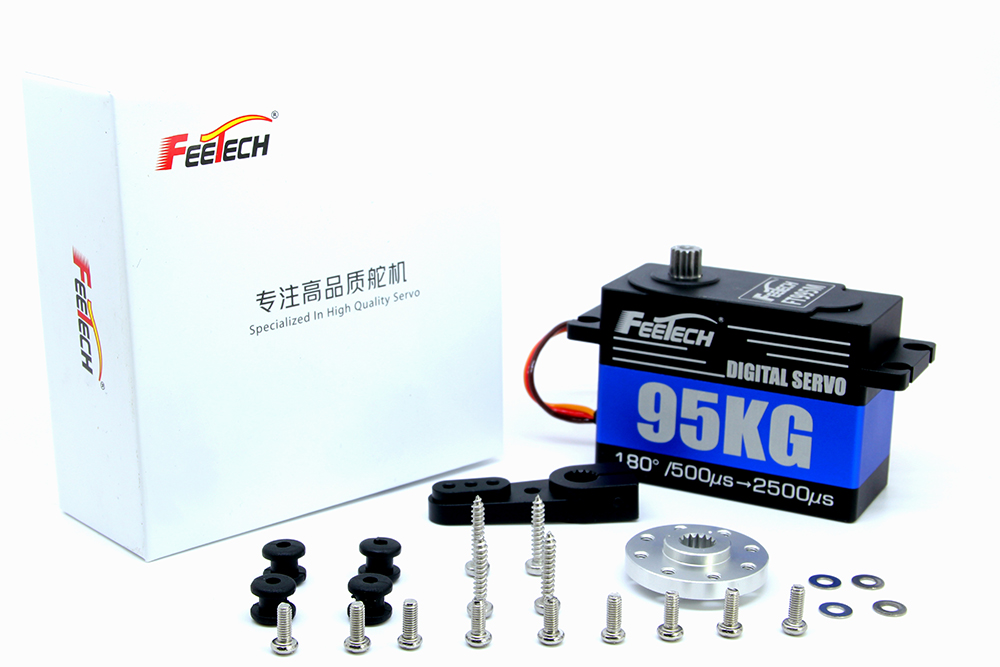

7.4V 95kg.cm180°舵机/7.4V 95KG 180 Degree Servo |
| 存储温度 Storage Temperature Range | -30℃～80℃ |
| 运行温度 Operating Temperature Range: | -20℃～60℃ |
|
尺寸 Size: |
A：65mm B：30mm C: 48mm |
|
重量 Weight: |
187.5g± 1g |
| 齿轮类型 Gear type: |
钢 Steel |
| 机构极限角度 Limit angle: |
NO limit |
| 轴承 Bearing: | 滚珠轴承 Ball bearings |
| 出力轴 Horn gear spline: |
15T/7.6mm |
| 减速比Gear Ratio： | 1/399 |
| 外壳 Case: | Alumi num |
| 舵机线 Connector wire: | 30±0.5CM |
| 马达 Motor: |
Core Motor |
|
工作电压Operating Voltage Range: |
6-9V |
| 静态电流Idle current (atstopped) |
30MA@8.4V |
|
空载速度 No load speed: |
0.268sec/60°(40RPM)@7.4V |
| 空载电流 Runnig current(at no load) : | 600mA@7.4V |
|
堵转扭矩 Peak stall torque: |
95kg.cm@7.4V 105kg.cm@8.4V |
|
额定扭矩 Rated torque: |
22.5kg.cm@7.4V |
| 堵转电流 Stall current: | 9.5A@7.4V |
| 控制信号Command si gnal | Pulse width modulation |
| 控制系统类型 Control System Type | Digital comparator |
| 脉冲宽度范围Pulse width range | 500~2500 μ sec |
| 中立位置Stop position | 1500 μ sec |
| 操作角度Running degree |
180±5°(at 500→2500μsec) |
| 死区宽度Dead band width | ≤4 μ sec |
| 旋转方向Rotating direction | 逆时针 Counterclockwi se (在1500→2500 μ sec) |
| 详细规格书下载Download detailed specifications: | |
| 电子保护 Electronic Protection | 堵转8秒/Stall 8sec |

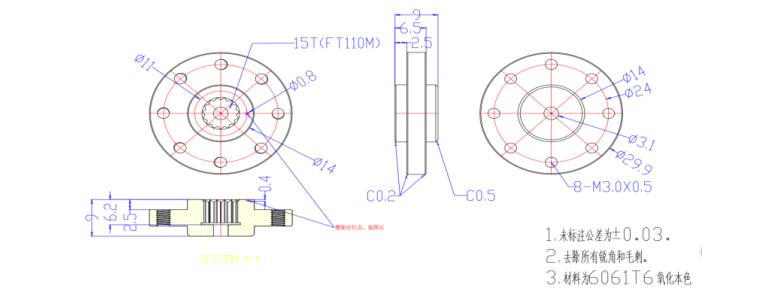

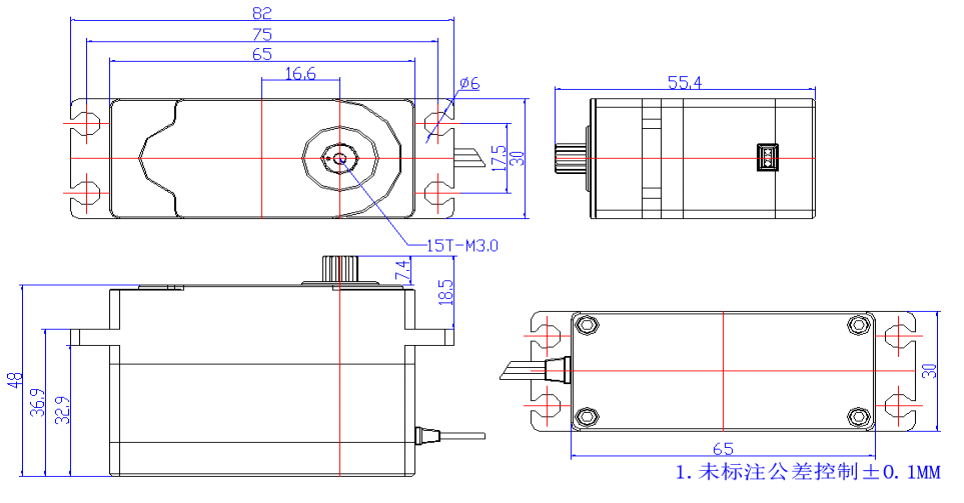

| 外形图 The Drawings: |
