型 号 Model： |
FT350BL |
|
产品名称 Product Name: |
24V 350kg.cm180°舵机/24V |
| 存储温度 Storage Temperature Range | -40℃～80℃ |
| 运行温度 Operating Temperature Range: | -40℃～60℃ |
|
尺寸 Size: |
A：45mm B：102mm C: 100.1mm |
|
重量 Weight: |
950g± 3g |
| 齿轮类型 Gear type: |
钢 Steel |
| 机构极限角度 Limit angle: |
200° |
| 轴承 Bearing: | 滚珠轴承 Ball bearings |
| 出力轴 Horn gear spline: |
一字 |
| 减速比Gear Ratio： | 1/252 |
| 外壳 Case: | Alumi num |
| 舵机线 Connector wire: | 43±1CM |
| 马达 Motor: |
Brushless Motor |
|
工作电压Operating Voltage Range: |
16-28V |
| 静态电流Idle current (atstopped) |
35mA@24V |
|
空载速度 No load speed: |
0.285sec/60°(35RPM)@24V |
| 空载电流 Runnig current(at no load) : | 160mA@24V |
|
堵转扭矩 Peak stall torque: |
350kg.cm@24V |
|
额定扭矩 Rated torque: |
116kg.cm@24V |
| 堵转电流 Stall current: | 6.5A@24V |
| 额定电流 Rated Current | 1900mA@24V |
| 控制信号Command si gnal | Pulse width modification |
| 控制系统类型 Control System Type | Digital comparator |
| 脉冲宽度范围Pulse width range | 600→2400 μsec |
| 中立位置Stop position | 1500 μ sec |
| 操作角度Running degree |
180°± 5°(at 600→2400μsec) |
| 死区宽度Dead band width | ≤4 μ sec |
| 旋转方向Rotating direction | 顺时针 clockwise(在600→2400μsec) |
| 防水性能Waterproofperformance |
IP65 |
| 详细规格书下载Download detailed specifications: | |
| 外形图 The Drawings: |

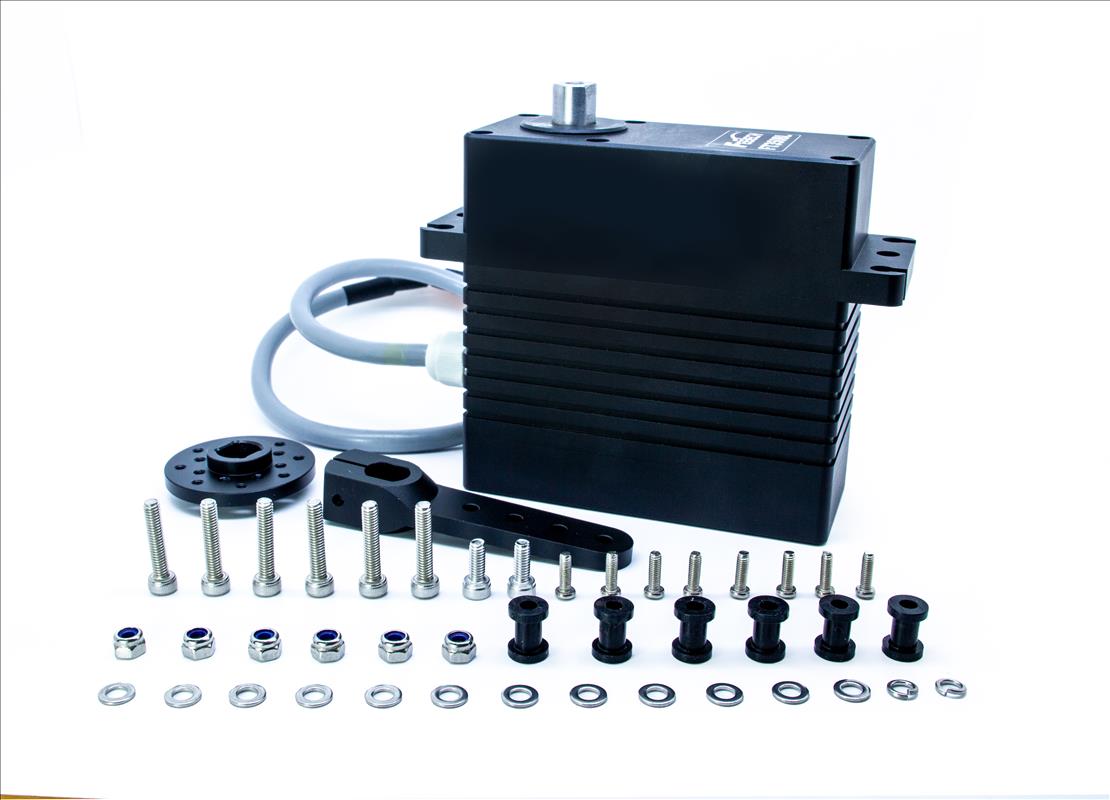

350kg.cm 180° Brushless motor Servo
